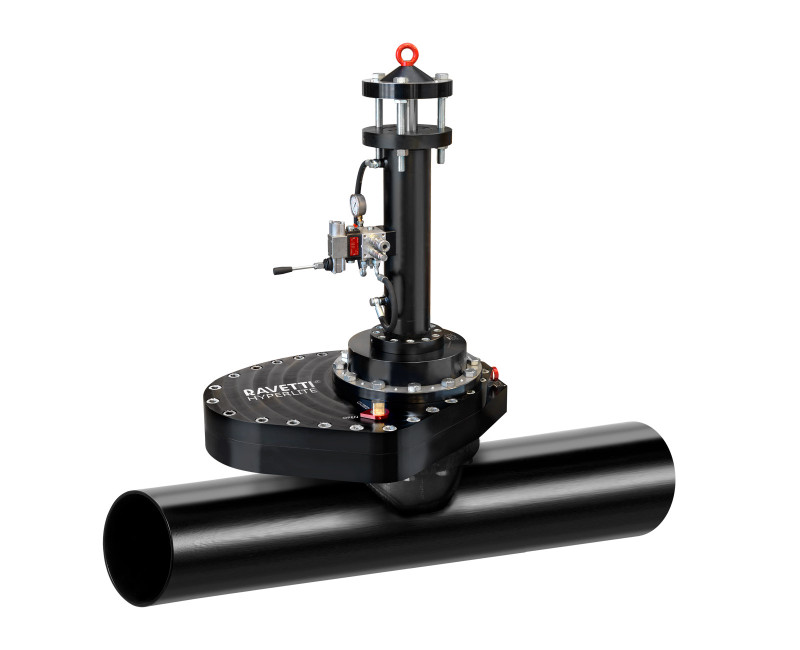

This is the Ravetti’s most advanced and high-performance Stop/System® concept: Hyperlite!

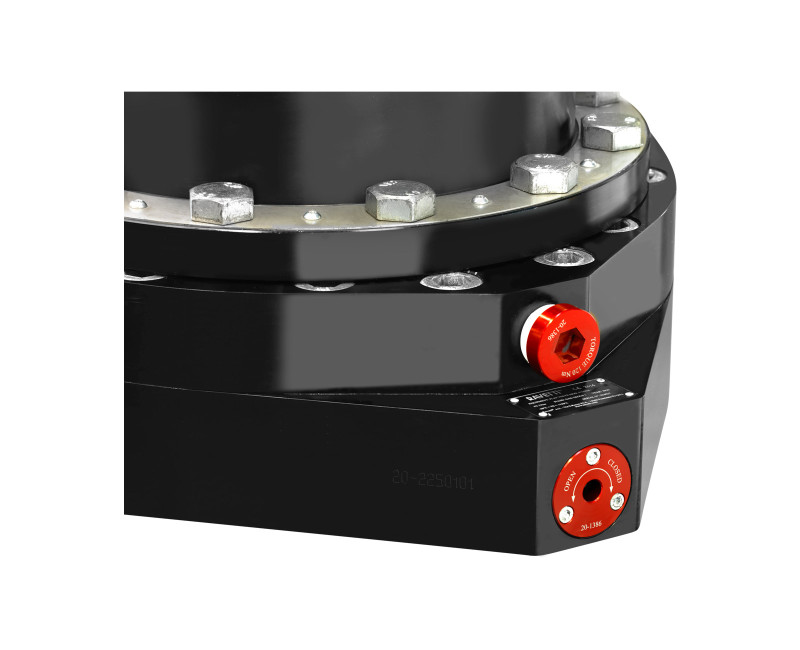

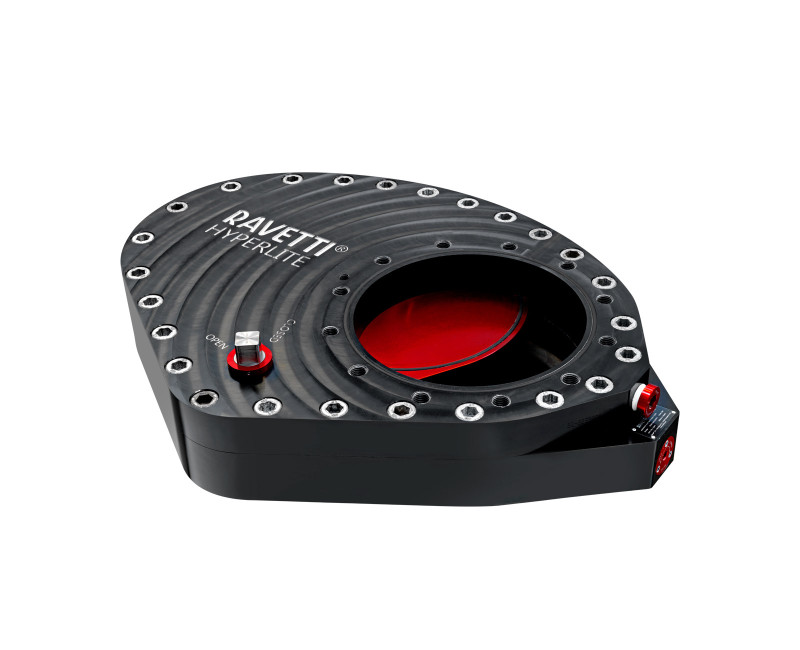

The name instantly refers to the most striking feature of this new equipment, that is its incredible lightness, which is the result of a very accurate research. However, it includes further additional innovative features, such as the barycentric eyebolt for locating the flat valve quickly on the fitting and the fully adjustable, as well as monitorable, new design hydraulic circuit.
Therefore, lightness, robustness, as well as its easy of use on pipelines with a wide variety of fluids (natural gas, hot water, chemical and petroleum products, etc.).
FIELD OF APPLICATION OF THE EQUIPMENT
PS(bar) |
TS(°C) |
PIPE MATERIAL |
25 |
-20/+130 |
Steel / Cast Iron |
HYPERLITE DIMENSIONS AND MASS
EQUIPMENT (Ø) |
DIMENSIONS LxBxH (mm) |
WEIGHT (Kg) |
10”
|
910x665x1485
|
445
|
12”
| 910x665x1465
| 465
|
14”
| 1365x835x1895
| 931
|
16”
| 1365x835x1865
| 955
|
20”
| 1620x1009x2235
| 1865
|
